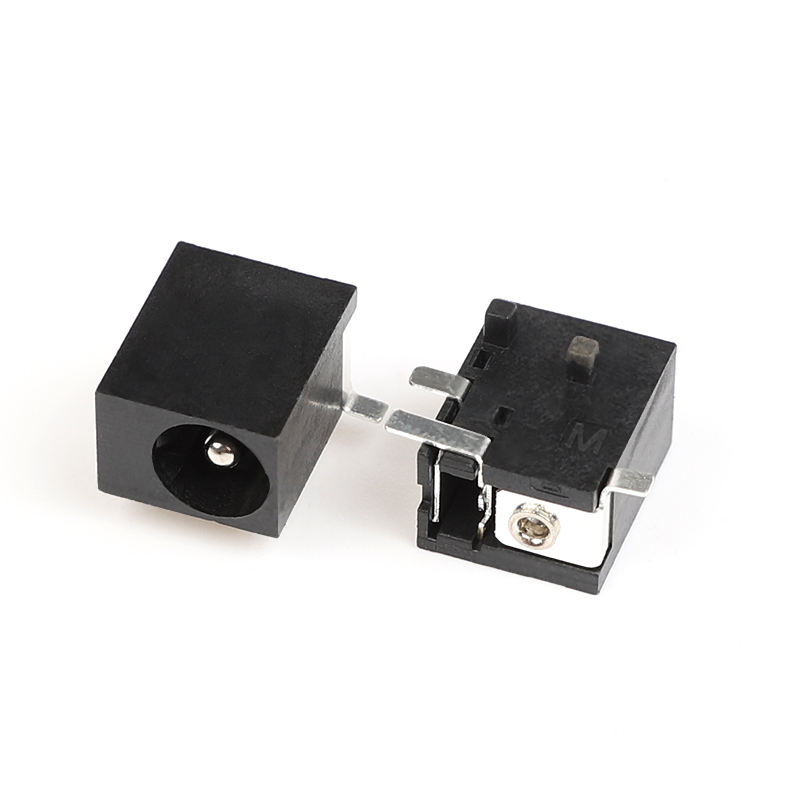

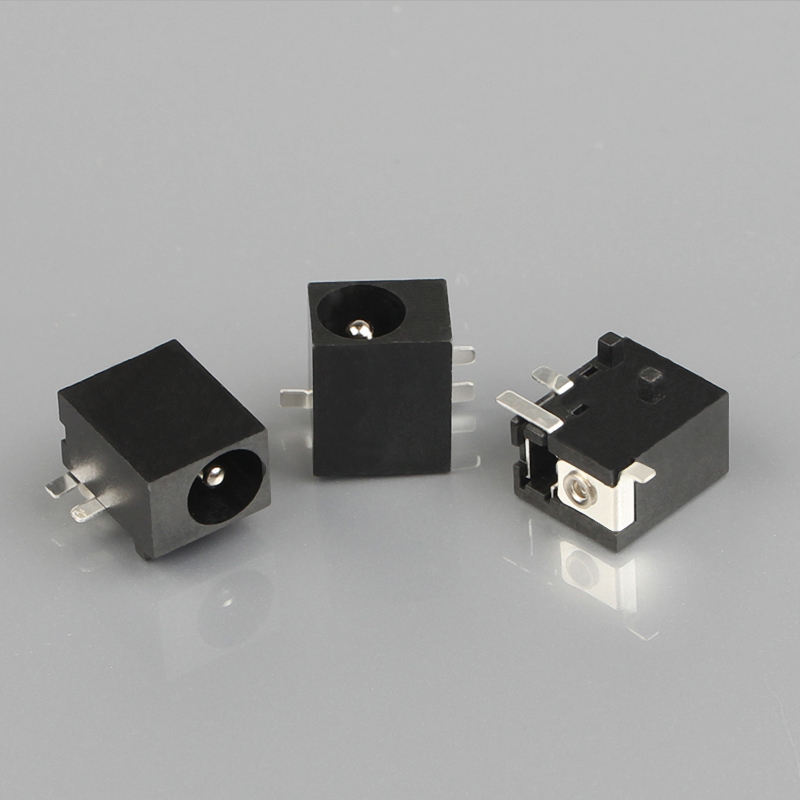

3 PIN 2.0mm SMT SMD RCA DC Power Jack Socket Female Connector
Product Description
Designed as a female DC power jack socket, the connector supports a secure connection between external DC power sources and internal PCB circuits. It is suitable for applications where PCB space optimization, assembly efficiency, and connector compatibility are key design considerations.
| product name |
DC Power socket |
| Product number |
3 Pin 2.0mm SMT SMD RCA DC Power Jack Socket Female Connector |
| Pitch Size |
2.0mm |
| Pin Configuration |
3 Pin |
| Mounting Type |
SMT / SMD Surface Mount |
| Application Type |
PCB Mounted Power Input Connector |
| Connector Function |
DC Power Input Connection |
| Structure |
Compact PCB Socket Design |
| Compatible Applications |
AI devices, IoT products, embedded systems, smart electronics |
| Assembly Method |
Automated SMT PCB Assembly |
| Product Category |
DC Power Connector / PCB Power Jack |
| Certification |
ROHS |
Key Features of 3 Pin 2.0mm SMT SMD DC Power Jack
3 Pin Configuration
Provides a standard three-terminal connection structure for PCB power input applications.
2.0mm Compact Pitch Design
The compact size helps meet the requirements of miniaturized electronic devices where PCB space is limited.
SMT/SMD PCB Mounting Type
Designed for surface-mount assembly, supporting automated PCB manufacturing processes commonly used in consumer electronics and intelligent hardware production.
Female DC Power Socket Structure
Provides a reliable connection interface between external DC power adapters and internal electronic circuits.
Suitable for AI and Smart Hardware Applications
Designed for compact electronic systems including AI edge devices, smart monitoring equipment, embedded controllers, and IoT terminals.
Application Industries
AI Hardware -------------------- AI edge devices, intelligent terminals, AI controllers
IoT Electronics------------------ Smart sensors, IoT gateways, connected devices
Security Systems ---------------AI cameras, monitoring equipment
Industrial Automation---------------- Industrial controllers, inspection equipment
Consumer Electronics---------------- Portable electronics, smart devices
Robotics--------------- Robot control boards, embedded systems
Communication Equipment --------------- Network terminals, intelligent communication devices.
PCB Connector Orientations
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degrees increments: Parallel or mezzanine – both connectors are vertical orientation;90 Degrees, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;180 Degrees, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.
